Systems, consumables, accessories, PPE and spare parts. Call or email for pricing and availability. Our online store is in the works.
LightWELD is fast to learn and fast to set up, and it produces consistent results across a wide range of materials and thicknesses. Cleaning modes remove oils, rust and coatings before welding, and debris and discolouration after.

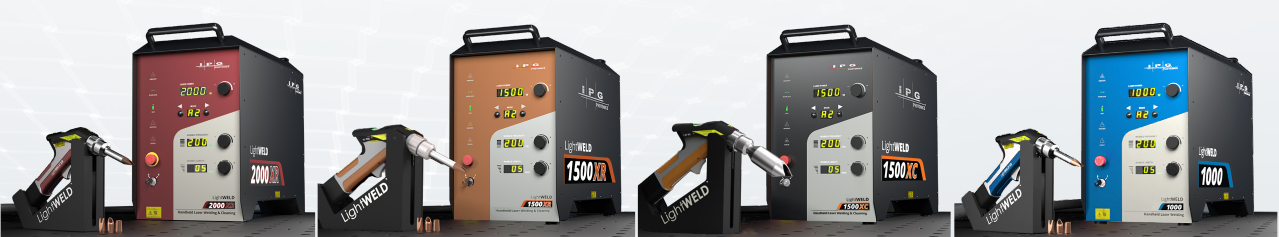

Scroll the table sideways to compare all four models.
| Maximum thickness | LightWELD 2000 XR | LightWELD 1500 XR | LightWELD 1500 XC | LightWELD 1000 |
|---|---|---|---|---|
| Steels — stainless, mild, galvanized | 0 ga (0.313") | 4 ga (0.234") | 9 ga (0.156") | 9 ga (0.156") |
| Aluminum 3 & 5 series | 0 ga (0.325") | 3 ga (0.229") | 6 ga (0.162") | 8 ga (0.129") |
| Aluminum 6 series | 3 ga (0.229") | 4 ga (0.204") | — | 8 ga (0.129") |
| Nickel alloy | 1 ga (0.281") | 6 ga (0.203") | — | — |
| Titanium | 4 ga (0.234") | 6 ga (0.203") | — | — |
| Copper | 8 ga (0.129") | 12 ga (0.081") | — | — |
| Wobble welding width | 0.200" | 0.200" | 0.200" | 0.200" |
| Cleaning width, pre and post weld | 0.600" | 0.600" | 0.600" | — |
| High frequency peak power for cleaning | 3000 W | 2500 W | 2500 W | — |
| Laser power | 2000 W | 1500 W | 1500 W | 1000 W |
Specifications from IPG Photonics. Maximum thicknesses are single-pass figures and vary with joint geometry, fit-up and material condition.
Wire & Rod feeding accessories allow you to semi-automate the handheld laser welding process. The filler pushes the torch along the joint allowing you to precisely control the travel speed. This significantly improves the repeatability of your process, and increases the gap tolerance when compared to autogenous laser welding.
Protective windows shield the expensive optical components from damage and contamination, and should be inspected and replaced regularly to avoid damage to the focus lens, galvometer, collimating lens, and quartz block at the fibre terminal. Damaged optics are the leading cause of production downtime, and frequent replacement of the protective window is key to ensuring weld quality and uptime.
Genuine IPG cover slides sold in packs of 5. Specifically coated for the power density of LightWELD systems. LightWELD XR are the highest brightness lasers on the market. The coatings are critically important for the plasma and back reflection monitoring. If you start to see overheating or plasma/back reflection errors, contaminated optics are the likely culprit.
Standard and gas lens nozzles, contact tips, nozzle extensions and adapters across the LightWELD range.
Heavy duty welding carts, dual wire feed adapters, gas lens nozzles, pressure regulator kits, signal cables and power connectors.
Laser safety glasses, welding helmets, reflective filters and replacement shades. Fiber laser light is invisible, which is exactly why the eyewear matters. Laser safety glasses are rated for specific wavelengths and are not a substitute for any other kind of eye protection.
Optics, Teflon liners, drive rolls, collets, housing tubes, O-rings, springs and adapters. We carry the fast movers so a worn liner does not turn into a week of downtime waiting on a border crossing.
Lightspeed Welding is here to be your partner at every step of your handheld laser welding journey, from the first demo through operator training and ongoing support. Ask us about financing options when you are ready to talk numbers.
We are putting the full consumables and spare parts catalogue online with live shipping rates and same-day dispatch from Carstairs. Until it is live, call or email a parts list and we will get it moving today.
Tell us your model and what is worn, and we will tell you what to order. No account, no minimum.
